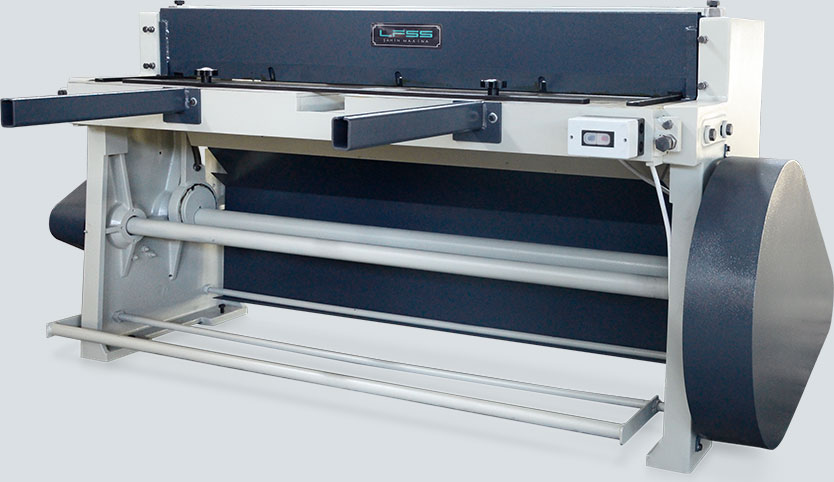

EMGAMOTORIZED GUILLOTINE SHEAR
EMGA1320 – 2,5 mm
1520 – 2 mm
• Cast iron frames and base Steel Plate and Upper Jaw
• Mechanical Sheet fixer to avoid slipping, Adjustable sledges for Upper jaw, Adjustable back gauge for narrow and short parts
• 4 sided 2370 quality high tensile steel blades
• Easy setting of blade gap, Preventor mechanism for blades overlapping, Foot pedal system to arrange for single or multi-cuts
• Sensitive Frame to enable Clear purpendicuar cuts, silent clutch system, Adjustable front gauges to enable wide piece cutting
• Sheet cover for main shaft and eccentric arms, Cover sheet for flywheel
GENERAL
OPTIONAL
1
2
3
4
| EMGA | 1320×2,5 | 1520×2,0 | |
|---|---|---|---|
| Table Dimension | mm | 380×1420 | 380×1620 |
| Blade Length | mm | 1310 | 1510 |
| Shearing Length | mm | 1300 | 1500 |
| Shearing Capacity (Mild Steel) | mm | 2,5 | 2,0 |
| Shearing Capacity (Stainless) | mm | 1,2 | 1,0 |
| Cut / Per Minute | X | 80 | 80 |
| Motor Power | kW | 3 | 3 |
| Back Gauge Length | mm | 600 | 600 |
| L Length | mm | 1550 | 1850 |
| W Width | mm | 840 | 840 |
| H Height | mm | 1200 | 1200 |
| Weight | kg | 900 | 1200 |
